Autel - MaxiIM IM508S - Key Programmer & Diagnostic Tool - 2 Years of Updates & Support Subscription
- Product SKU: AUTEL-IM508S-2Y
- Category: Autel, Key Programmers
Product SKU: AUTEL-IM508S-2Y
Cost-effective Key Programming Tool: Autel MaxiIM IM508S Same as Autel IM608/IM608 Pro, the combination of full-system diagnostics and advanced service functions, can facilitate your diagnostic process. It is also an easy-to-use device for key fob programming when cooperating with XP200, providing extraordinary anti-theft services for repair shops and technicians.
Comprehensive IMMO & Key Programming Tool: Autel IM508S scan tool sets up a powerful section to further extend its capabilities of being a key programming tool. It can perform IMMO ECU reset/adaptation, refresh/coding, read PIN/CS (All Key Lost), key generation, key learning, remote learning. Note: ECU programming is not available.
Autel IM508 Smart Mode & 28+ Service Functions: The IM508S diagnostic scanner marks the epitome of functionality and versatility. Smart Mode, also known as guided functions, provides step-by-step instructions to guide you through the entire operation process. Advanced maintenance services allow for EPB/ DPF/ SAS/ BMS service, TPMS replacement and sensor test.
Strong OE-Level Diagnostics: IM508S is a universal key programming tool as it functions for 80+ vehicle brands from America, Europe, and Asia. Compared with the others IM508S on the market, this IM508S will not be restricted by IP address. It reads PIN and supports multiple languages.
Sound After-sales Service and Warranty: Autel MaxiIM IM508S key programming scanner comes with a 1-year free software update. It is also backed by a 30-day replacement or full refund, and a 12-month warranty. If you have any questions or want to check the compatibility, please contact us.
MaxiIM IM508S

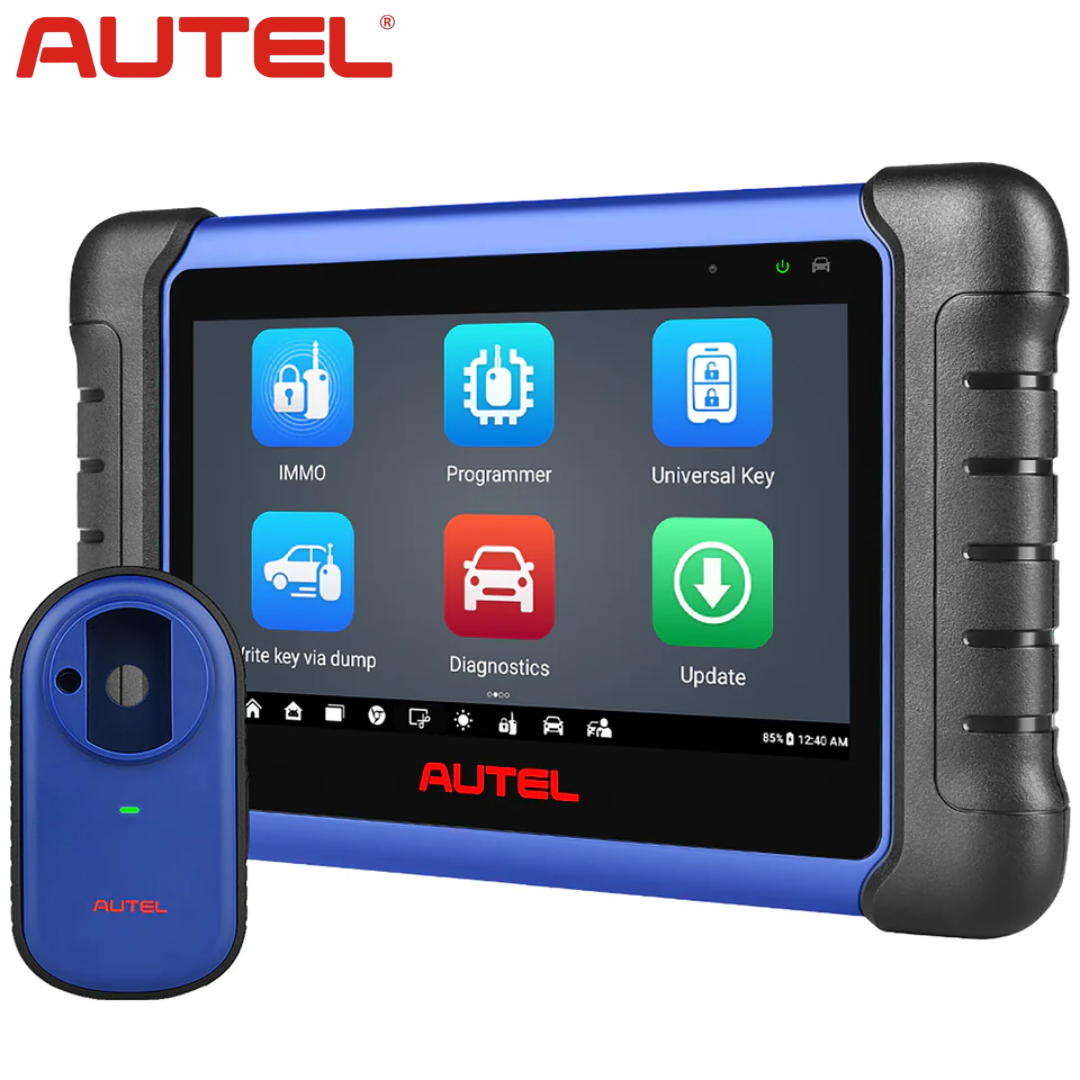

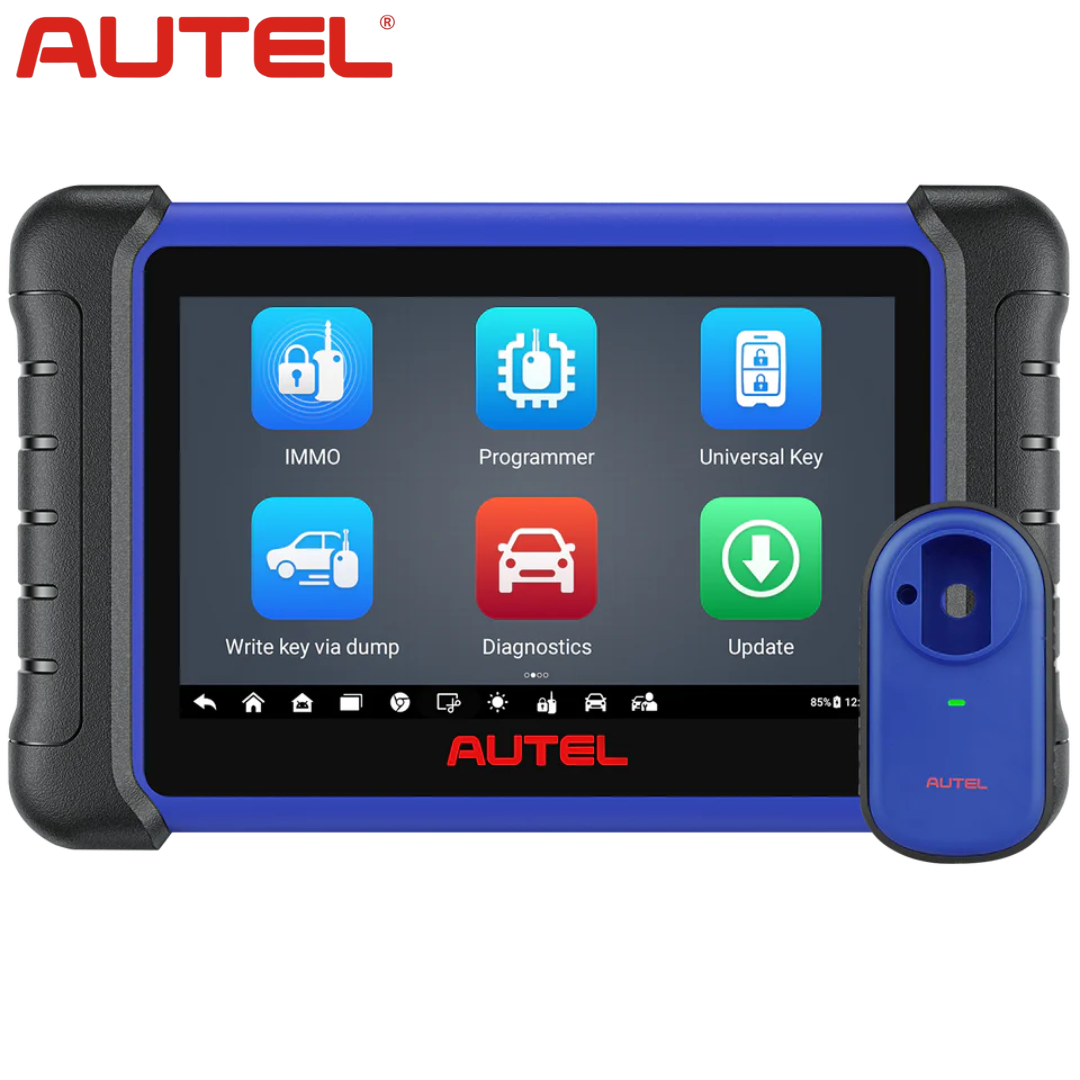

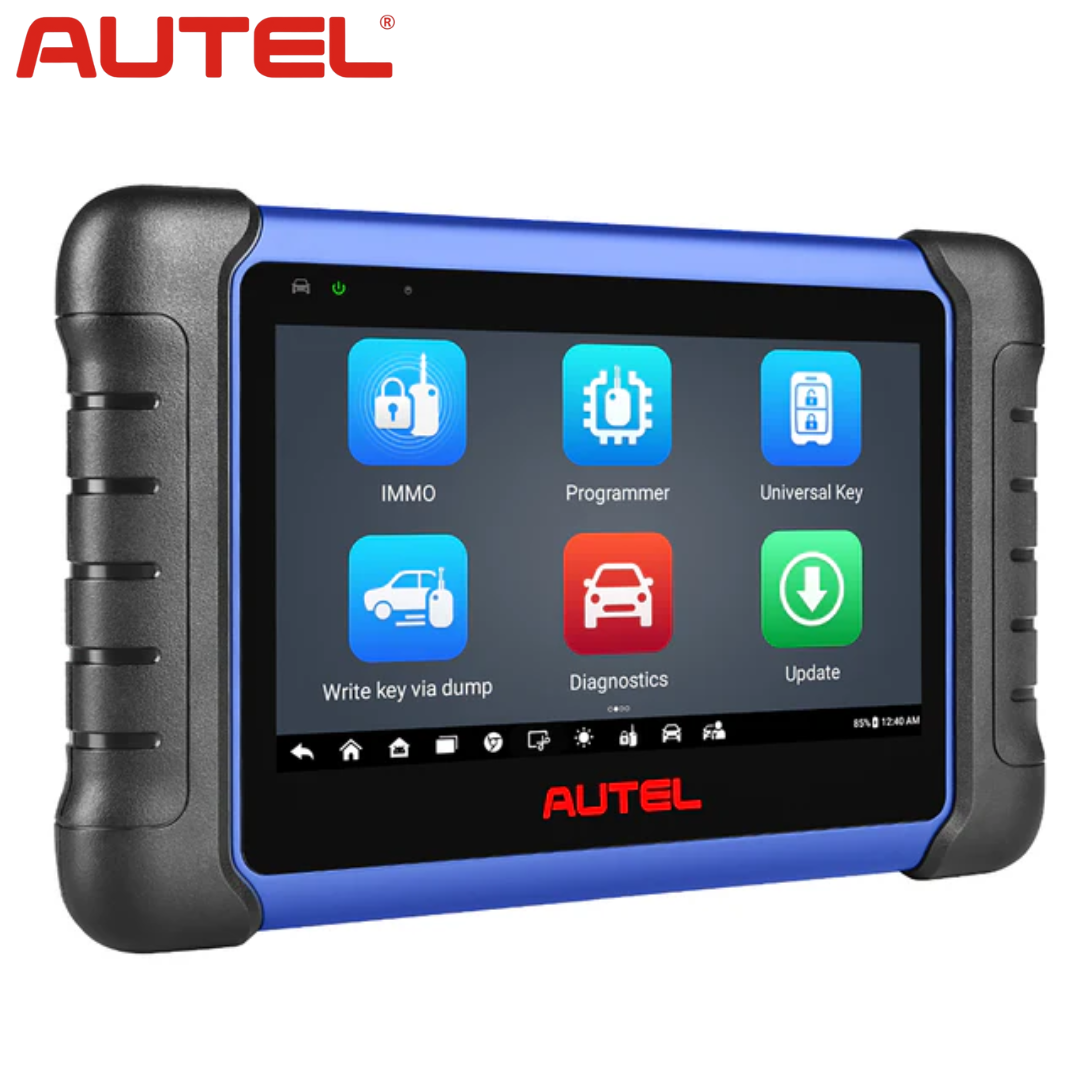

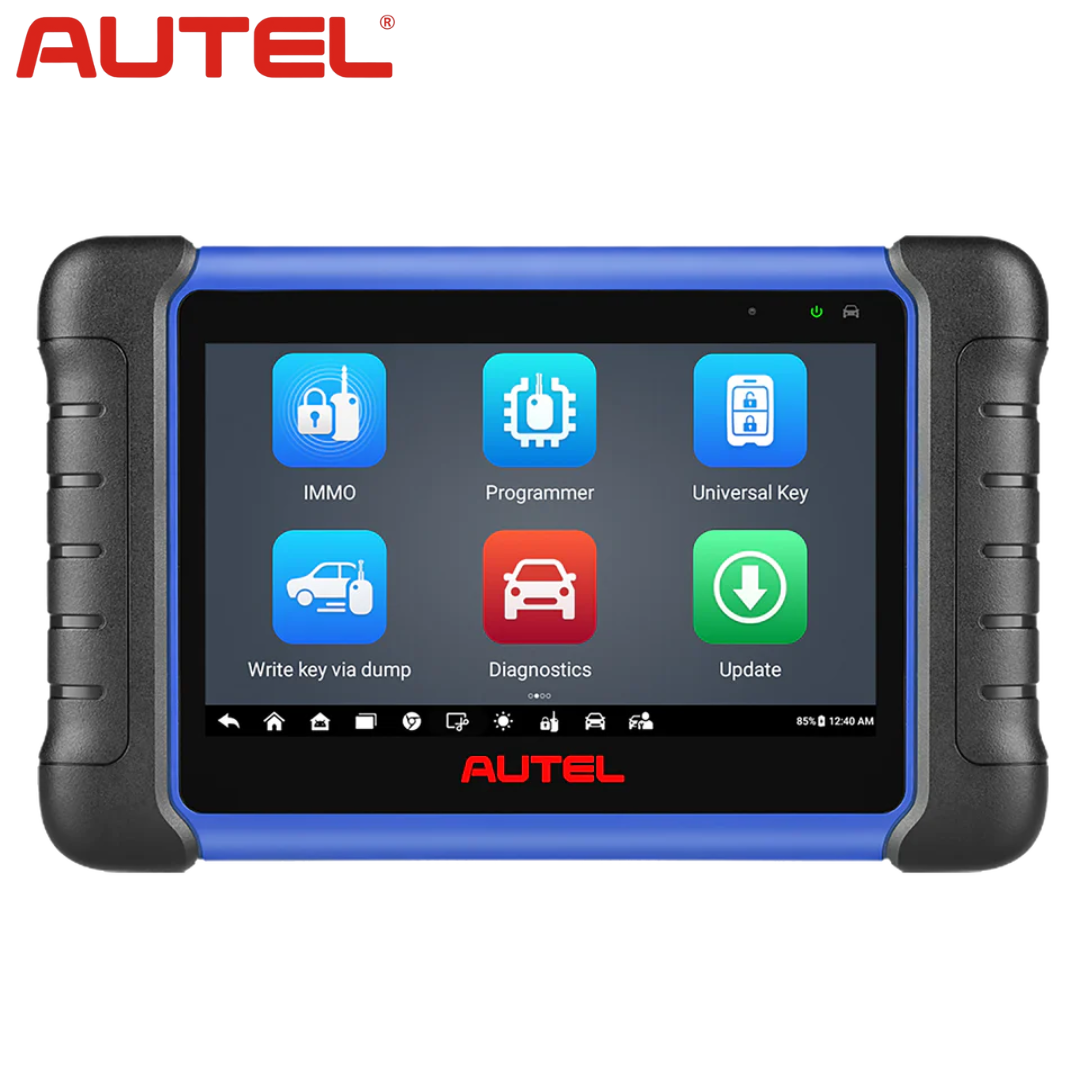

Autel MaxiIM IM508S is a fast, easy-to-use, and ultra-portable immobilizer and key programming device. The Android-based touchscreen tablet features powerful quad-core processor, intuitive design and straight-forward interface. Equipped with the XP200 key programmer, IM508S is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of makes and models on the market, IM508 provides you with superior special functions. IM508 is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services.
Specification:
| Updates | 2 Years of Updates & Support Subscription |
| Operating System | Android 11.0 |
| Processor | Cortex-A55 processor (1.8 GHz) |
| Memory | 4G & 64G |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity |
|
| Sensors | Ambient light sensor for brightness auto changing |
| Audio Input / Output | Input: N/A Output: buzzer |
| Power and Battery | 3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply |
| Tested Battery Life | Around 4.5 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Net Weight | 788 g (2.42 lb.) |
| Download |
Autel MaxiIM IM508S User Manual Autel MaxiIM IM508S Quick Guide |
Product SKU: AUTEL-IM508S-2Y
Cost-effective Key Programming Tool: Autel MaxiIM IM508S Same as Autel IM608/IM608 Pro, the combination of full-system diagnostics and advanced service functions, can facilitate your diagnostic process. It is also an easy-to-use device for key fob programming when cooperating with XP200, providing extraordinary anti-theft services for repair shops and technicians.
Comprehensive IMMO & Key Programming Tool: Autel IM508S scan tool sets up a powerful section to further extend its capabilities of being a key programming tool. It can perform IMMO ECU reset/adaptation, refresh/coding, read PIN/CS (All Key Lost), key generation, key learning, remote learning. Note: ECU programming is not available.
Autel IM508 Smart Mode & 28+ Service Functions: The IM508S diagnostic scanner marks the epitome of functionality and versatility. Smart Mode, also known as guided functions, provides step-by-step instructions to guide you through the entire operation process. Advanced maintenance services allow for EPB/ DPF/ SAS/ BMS service, TPMS replacement and sensor test.
Strong OE-Level Diagnostics: IM508S is a universal key programming tool as it functions for 80+ vehicle brands from America, Europe, and Asia. Compared with the others IM508S on the market, this IM508S will not be restricted by IP address. It reads PIN and supports multiple languages.
Sound After-sales Service and Warranty: Autel MaxiIM IM508S key programming scanner comes with a 1-year free software update. It is also backed by a 30-day replacement or full refund, and a 12-month warranty. If you have any questions or want to check the compatibility, please contact us.
MaxiIM IM508S
Autel MaxiIM IM508S is a fast, easy-to-use, and ultra-portable immobilizer and key programming device. The Android-based touchscreen tablet features powerful quad-core processor, intuitive design and straight-forward interface. Equipped with the XP200 key programmer, IM508S is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of makes and models on the market, IM508 provides you with superior special functions. IM508 is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services.
Specification:
| Updates | 2 Years of Updates & Support Subscription |
| Operating System | Android 11.0 |
| Processor | Cortex-A55 processor (1.8 GHz) |
| Memory | 4G & 64G |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity |
|
| Sensors | Ambient light sensor for brightness auto changing |
| Audio Input / Output | Input: N/A Output: buzzer |
| Power and Battery | 3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply |
| Tested Battery Life | Around 4.5 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Net Weight | 788 g (2.42 lb.) |
| Download |
Autel MaxiIM IM508S User Manual Autel MaxiIM IM508S Quick Guide |
