Autel - MaxiEV ALT100L - Battery Leak Integrity Tester
- Product SKU: DS-AUTEL-ALT100L
- Category: Autel, Cables & Adapters
Product SKU: DS-AUTEL-ALT100L

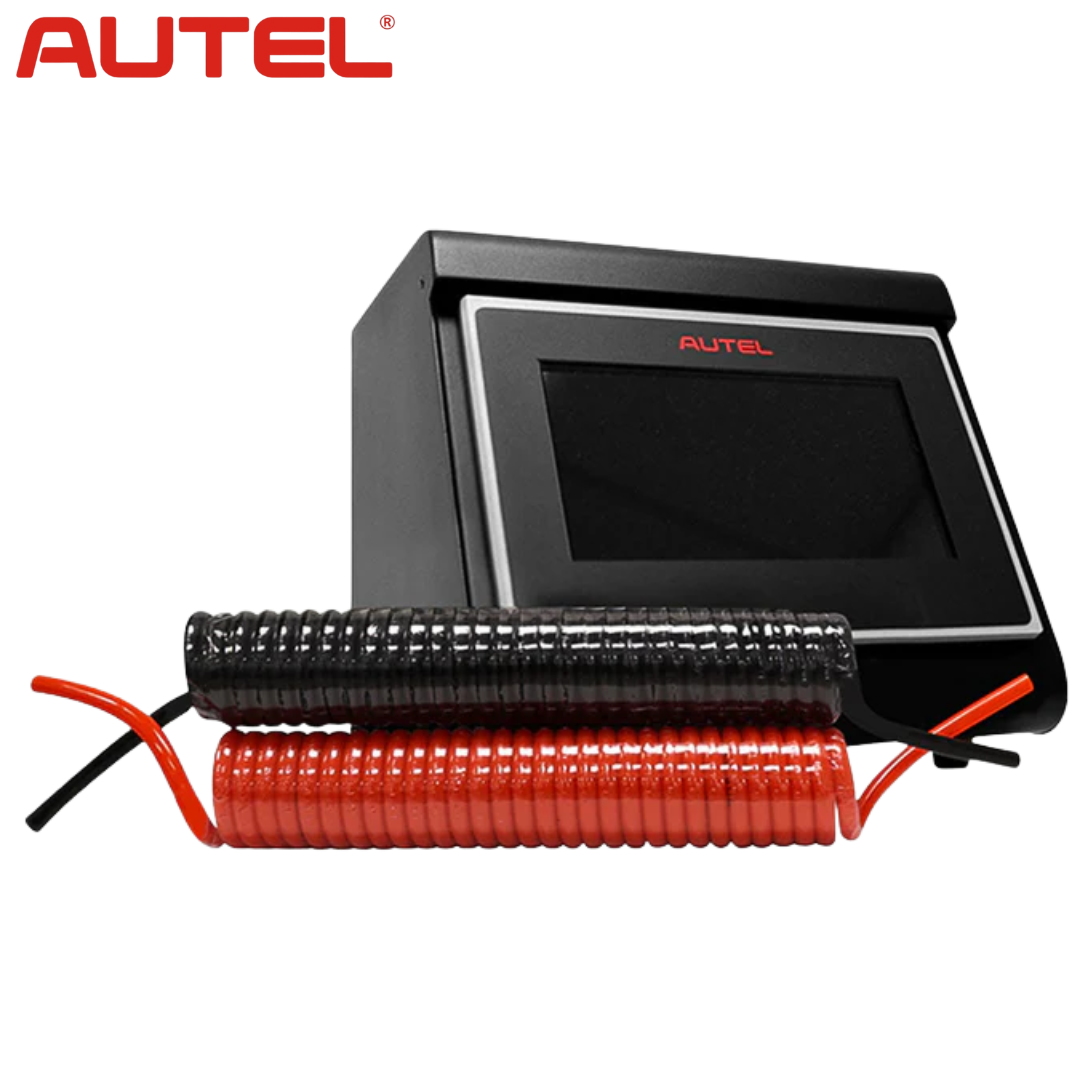

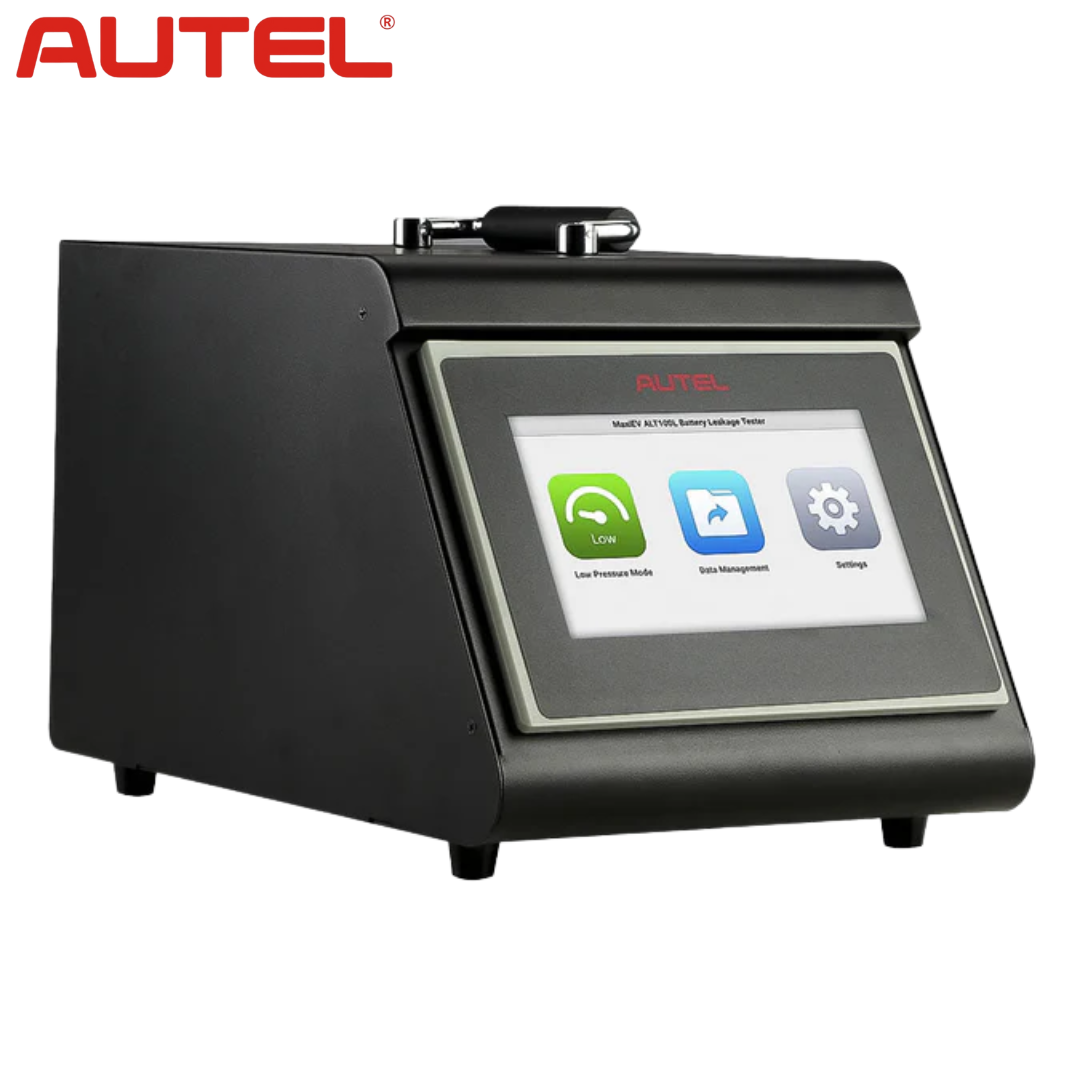

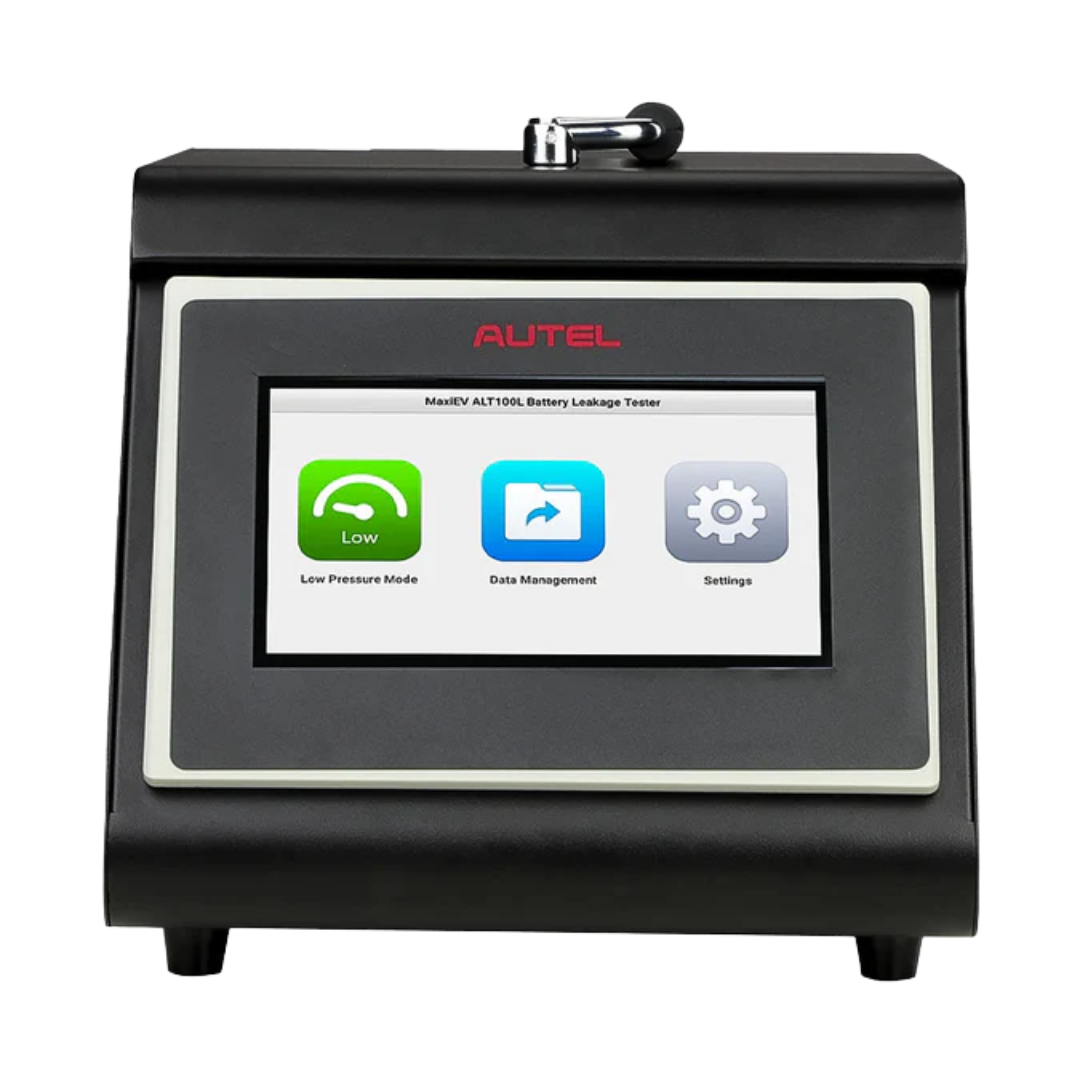

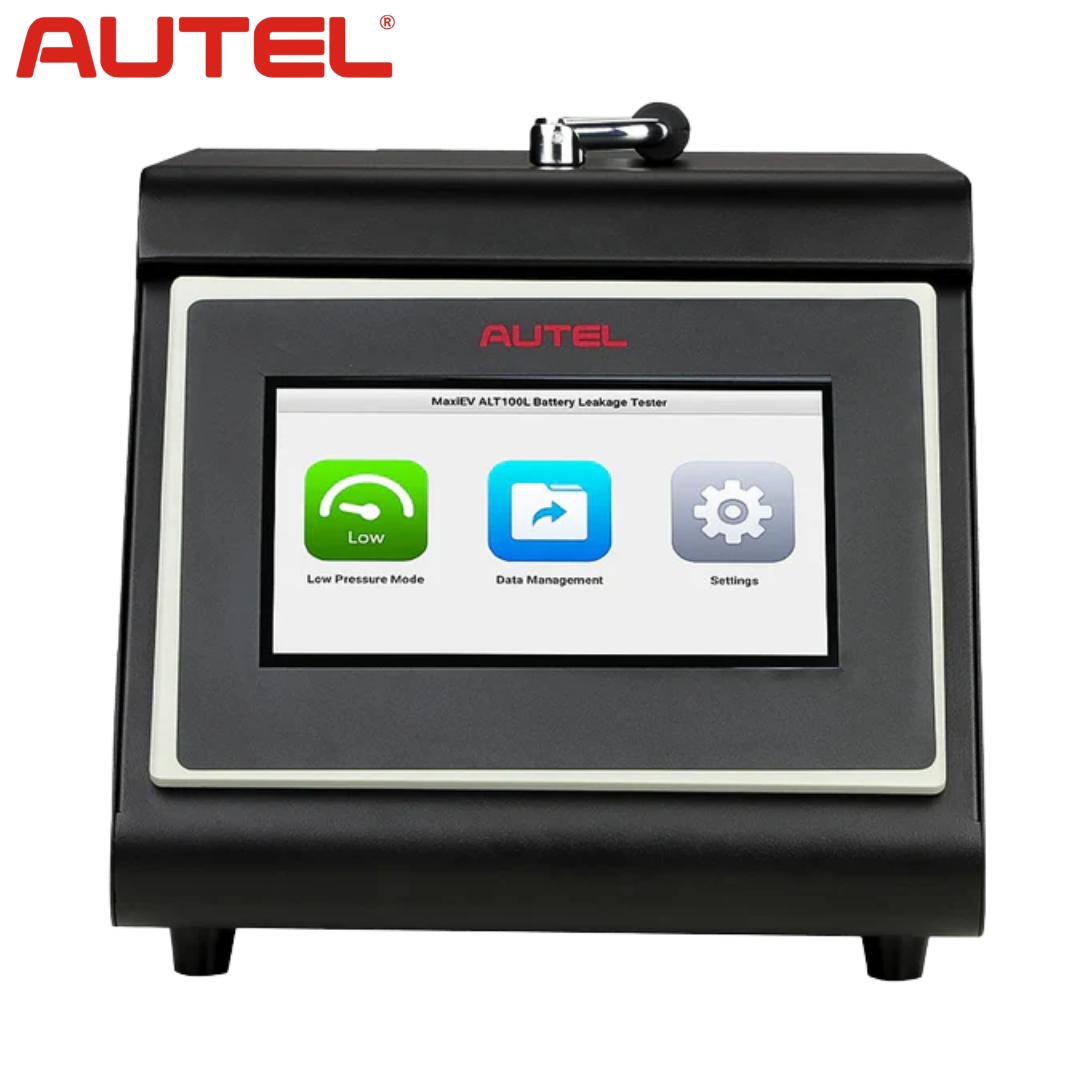

The MaxiEV ALT100L tests high-voltage battery enclosures and high-voltage thermodynamics systems for leaks. Offers real-time, dual-pressure display of current pressure and leakage fluctuation with high-sensitive pressure sensing that significantly improves test accuracy and stability. The ALT100L offers customizable presets: Pack ID and volume, target pressure, testing phase time, alarm settings, and save and print reports. Offers onscreen test monitoring, and automatically saves test parameters for easy retest adjustments. Includes a one-year Limited Warranty
Features:
- High sensitivity High-sensitive pressure sensing significantly improves test accuracy and stability.
- Pressure dual display Pressure dial and test curve are displayed on the same screen in real-time.
- Intelligent alerts Tester will provide audible and visual alerts to ensure safety when the test is abnormal or failed.
- Auto screenshot Screenshots of test data can be automatically saved and downloaded to USB disk.
- Visualized process Display the progress time of each stage during the test.
- Parameter settings Users can preset test parameters such as pack ID, pack volume, target pressure, time for each phase, leakage alarm, and more.
- Barcode scanner Supports barcode scanner access, directly scans code, and displays the battery pack ID.
- Parameter management The system auto remembers the last test parameters, enabling future test modification and improving efficiency.
- Remote management The device supports online system upgrades and the optional cloud platform adds remote data transmission and management capability.
Specifications:
| Test Power | 20W (Max) |
| Test Pressure Range | 0-30KPa |
| Sensor Resolution | 1 Pa |
| Test Accuracy | ±5pa |
| Communication Port | RS-232 / USB |
| Data Storage | Internal memory / download via USB disk |
| Power Supply | AC220V |
| Air Supply | 0.1-1.0 MPa dry compressed air |
| Air Inlet Port / Test Port | ¢6mm air pipe/¢6mm air pipe |
| Work Temperature / Humidity | 10%-90% @25°C, without condensation |
| Dimensions (Weight) | 280*300*200 mm (3.5kg) |
Downloads: Spec Sheet
