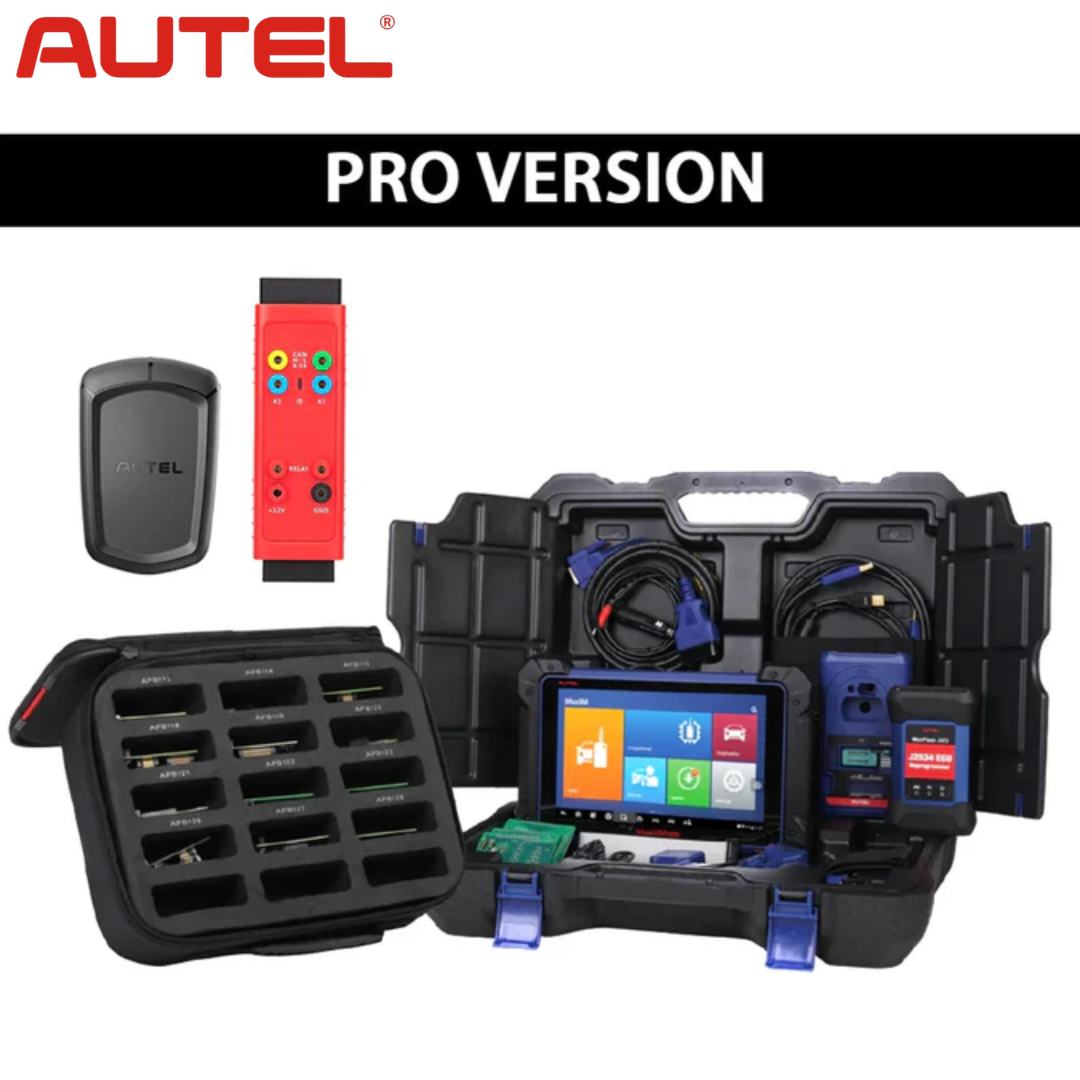

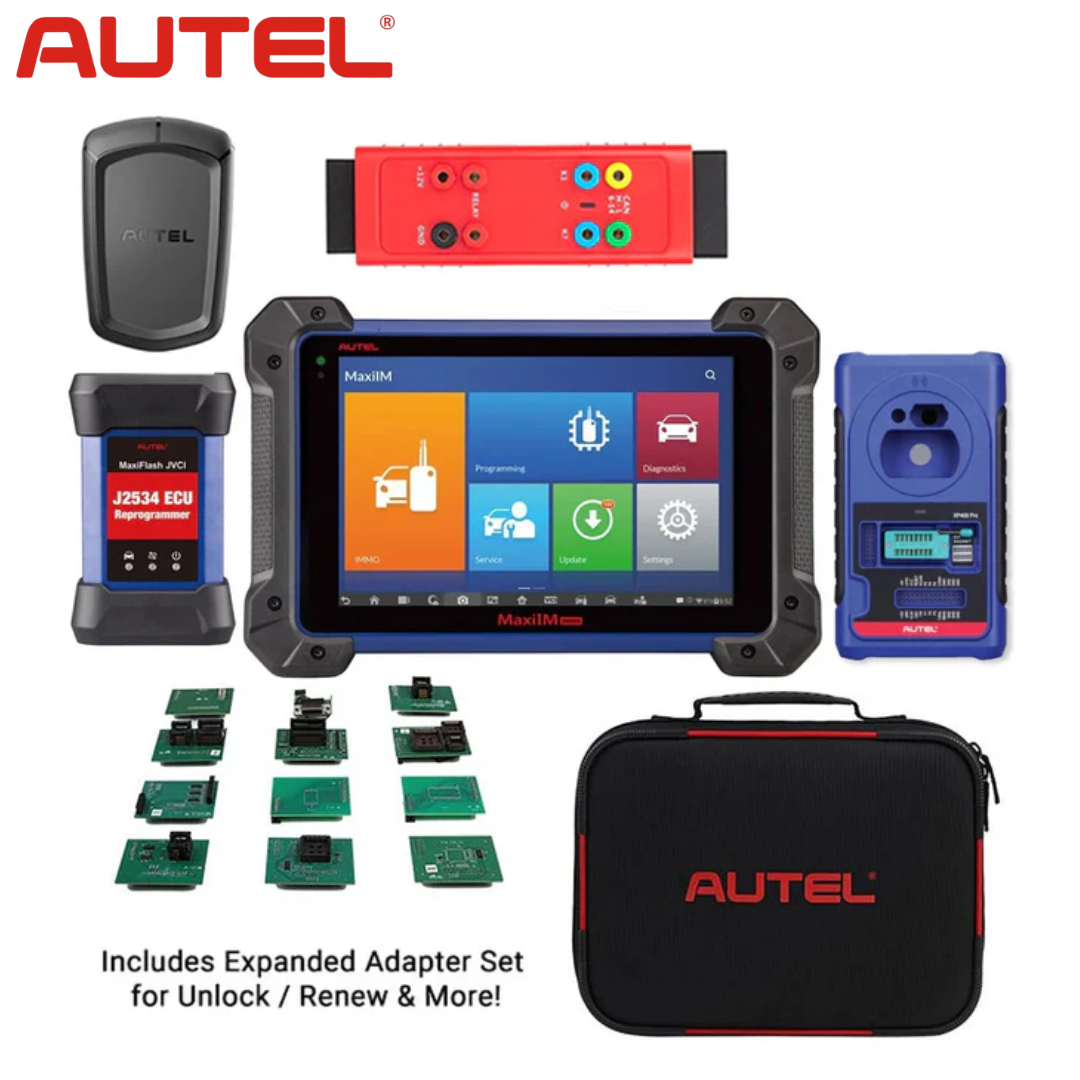

Autel MaxiIM IM608 PRO - Auto Key Programmer & Diagnostic Tool Plus APB112, G-BOX3 & IMKPA Accessories for Renew & Unlock (USA Version)

Product SKU: DS-AUTEL-IM608PROKPA-KIT

Autel MaxiIM IM608 PRO - Auto Key Programmer & Diagnostic Tool Plus APB112, G-BOX3 & IMKPA Accessories for Renew & Unlock (USA Version)

Autel MaxiIM IM608Pro: 2 Years Free Updates,1 Year Warranty

Includes:

• Autel MaxiIM IM608 Pro
• Autel G-BOX3 Key Programming Adapter
• Autel APB112 Smart Key Simulator
• Autel IMKPA Expanded Key Programming Accessories

Autel MaxiIM IM608 Pro Key Programming and Diagnostic Tool (USA Version)

MaxiIM IM608 PRO is the most advanced and unique all in one key programming and diagnostic tool that combines advanced key programming, all systems diagnostics, and advanced services in one Android based 10.1-inch touchscreen tablet. It is equipped with XP400 PRO key programmer and MaxiFlash ECU programmer to provide complete coverage of IMMO and programming functions. IM608 PRO provides you with all special functions to quickly diagnose all modules for the majority of the makes and models on the market. It is the unprecedented key programming and diagnostic tool that you ever wanted.

• Samsung Exynos 5260(2GB ROM)
• 10.1”1024x768 LCD capacitive touchscreen
• Internal reliable 64GB Memory
• Android Operating System for fast boot-up and multitasking
• Powerful combination of key programming/all system diagnostics/advanced maintenance services
• Smart Mode for guided and automated key learning
• Expert Mode for advanced key learning
• Read PIN/CS (all key lost) , key generation, key learning, remote learning
• IMMO ECU reset/adaptation, refresh/coding
• Transpronder read/write, EEPROM/MCU read/write
• Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
• Advanced maintenance services including EPB, DPF, SAS, Oil reset, and BMS

Specifications:

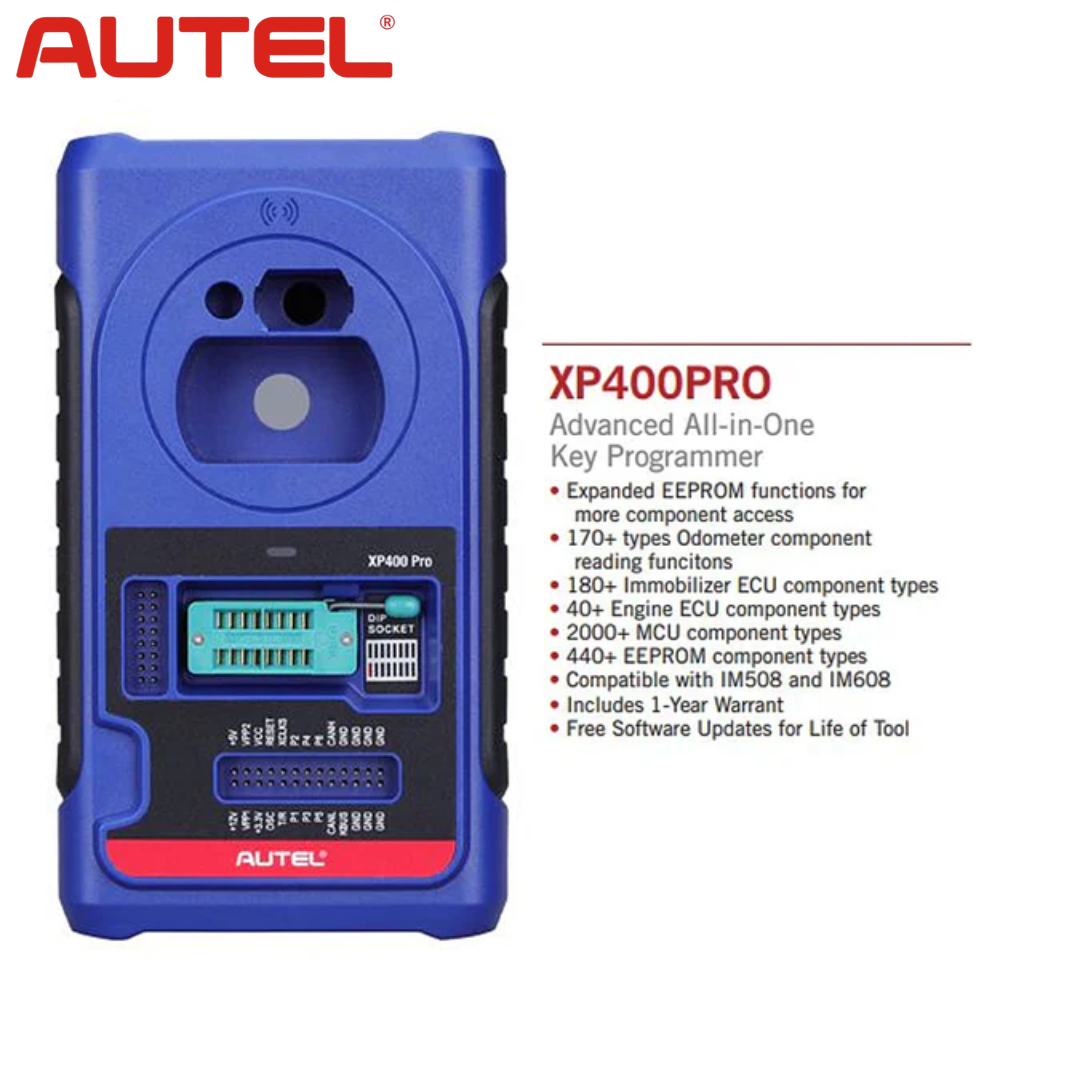

Autel XP400 PRO Key Programming and Diagnostic Tool

The XP400Pro is a replacement for XP400. It adds more functionality for BMW, Mercedes-Benz, as well as EEPROM reading. With the new protocols, the end-user will be able to read over 2000 (chips, components, devices) types including EEPROM and MCU Read, additional Odometer Read/Write, and more. Also, added functions for EWS3, W209, NEC, and more.

The new XP400Pro supports key renewal on 11 key types with additional adapters - IMKPA, Key Programming Accessories Kit.

• Expanded EEPROM functions for more component access.
• 170+ types Odometer component reading functions
• 180+ Immobilizer ECU component types
• 40+ Engine ECU component types
• 2000+ MCU component types
• 440+ EEPROM component types
• Compatible with IM508 and IM608
• Includes 1-Year Warranty
• Free Software Updates for Life of Tool

XP400Pro adds support for following chips：

• EEPROM-AMD-AM29FXXX series chip
• EEPROM- FUJITSU- MB29FXXX series chip
• EEPROM- ST- M29FXXX series chip
• Engine control module- ST- M29FXXX series chip
• IMMO- BENZ- ESL_W209_W906(Motorola) read/write/erase function
• IMMO- BMW-EWS3 module read/write function
• REMOTE_RENEW(renew key)- NEC- V51 and V5 chip read/write/erase

XP401 Pro adds support for following adaptor board:

• APB113 PCF79XX adaptor board
• APB114 EWS3 adaptor board
• APB115 NEC adapter board
• APB118 NEC ELV adaptor board
• APB119 TB28FXXX adaptor board
• APB120 TMS370 adaptor board
• APB122 AM29FXXX adaptor board1
• APB123 AM29FXXX adaptor board2
• APB126 M35080/D80 adaptor board
• APB127 MC68HC0(7)05BXX adaptor board
• APB128 MC68HC05X32 adaptor board

G-BOX3 KEY PROGRAMMING ADAPTER

KEY PROGRAMMING ADAPTER FOR MERCEDES AND BMW VEHICLES

The Autel G-BOX3 is an adapter compatible with Autel’s MaxiIM IM608 and MaxiIM IM508 tablets (with the purchase of XP400Pro programmer) that aids in the programming of keys to Mercedes DAS3 CAN EIS/EXS vehicles in an ALL Keys Lost situation. The G-Box3 also supports DME/DDE ISN Reading and Writing in Boot Mode on applicable BMW vehicles. Bench Method is also supported. All Keys Lost password calculations are approximately 4x to 8x faster.

• MaxiIM Key Programming Tablet Accessory, compatible with IM608 and IM508 (with Xp400pro purchase)
• Mercedes-Benz All Keys Lost, Faster Password Calculation
• Mercedes-Benz All Keys Lost, eliminates repeated Insertions within the process
• Mercedes-Benz All Keys Lost, Can Be Programmed on the Vehicle Without Removing the Electronic Ignition Switch (EIS)
• BMW DME/DDE ISN Reading and Writing in Boot Mode or Bench Method
• Contains All Connections Including Cables, Fuse Connector, and CAN Line Connectors.

G-B0X 3 FEATURES

Autel APB112 Smart Key Simulator Works for Autel MaxiIM IM608/ IM508

Characteristics

• Smart key simulator.
• Compatible with IM608, IM508, and MX808IM.
• Compact but would need to be used with the XP400 .
• Cannot be used with the XP200.
• 46, 4D data collection.
• 46 smart key password calculation.
• 46 chip simulation.
• Toyota 4D (94/D4, 98) smart key simulation.
• Toyota H (88/A8, A9, 39) smart key simulation.
• Collects data from the ignition coil.
• Identify ignition coil troubles.
• Decode vehicle key chip data.
• Simulate vehicle key chip (ex - 4D chip).
• Must be used with an Autel diagnostic tool.
• Toyota/Lexus smart key all key lost.
• Chip decoding (Hyundai 46).
• Includes: APB112 Smart Key Simulator, USB Cable, Quick Reference Guide.

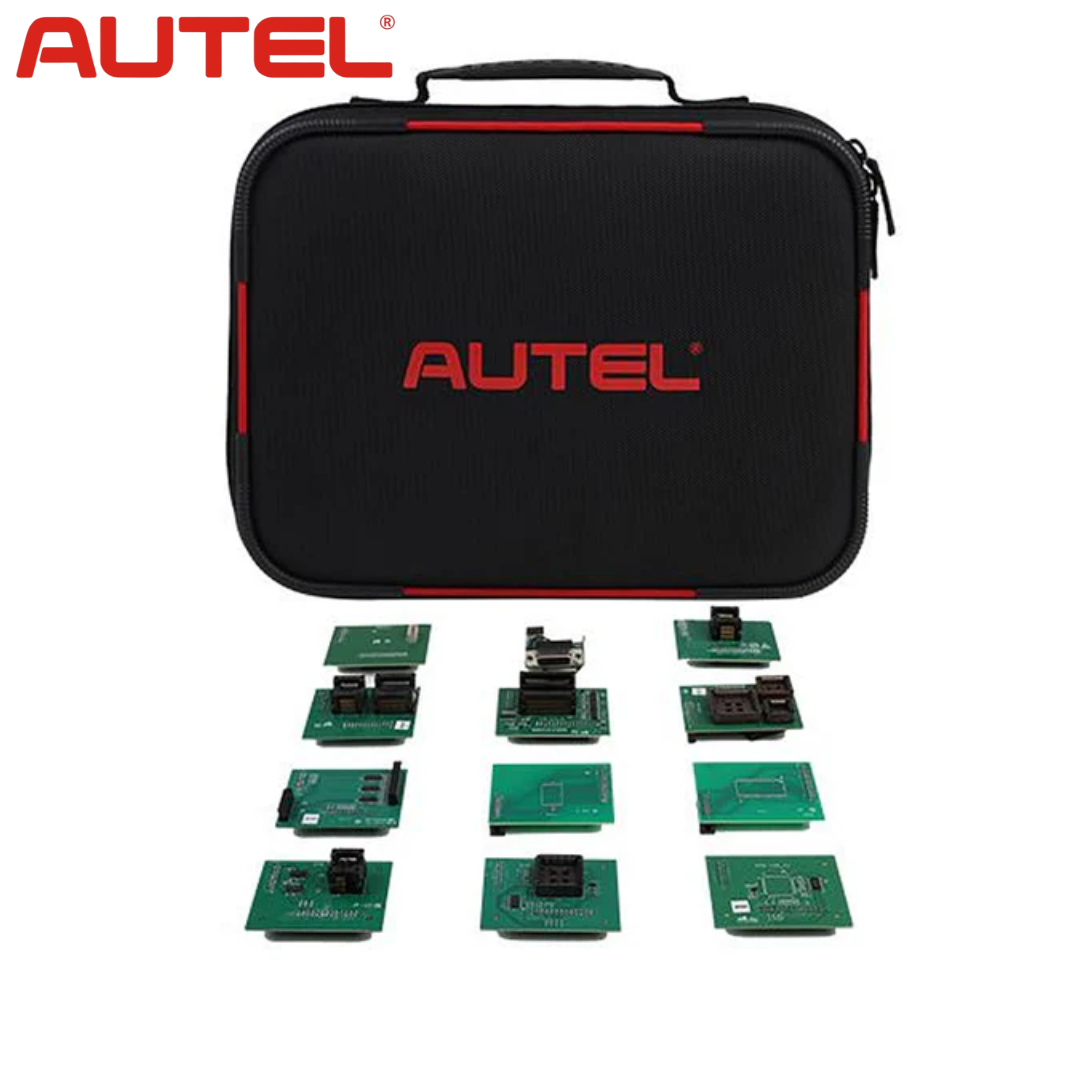

Autel IMKPA Expanded Key Programming Accessories

The IMKPA Accessories Kit works with the XP400Pro and supports the following functions:

• Currently supports over 10 key unlock types
• BMW EWS3 key learning
• Benz NEC key learning
• Benz ESL_W209 read/write/erase
• Compatible with IM508 and IM608 (XP400Pro required)
• Includes 1-Year Warranty

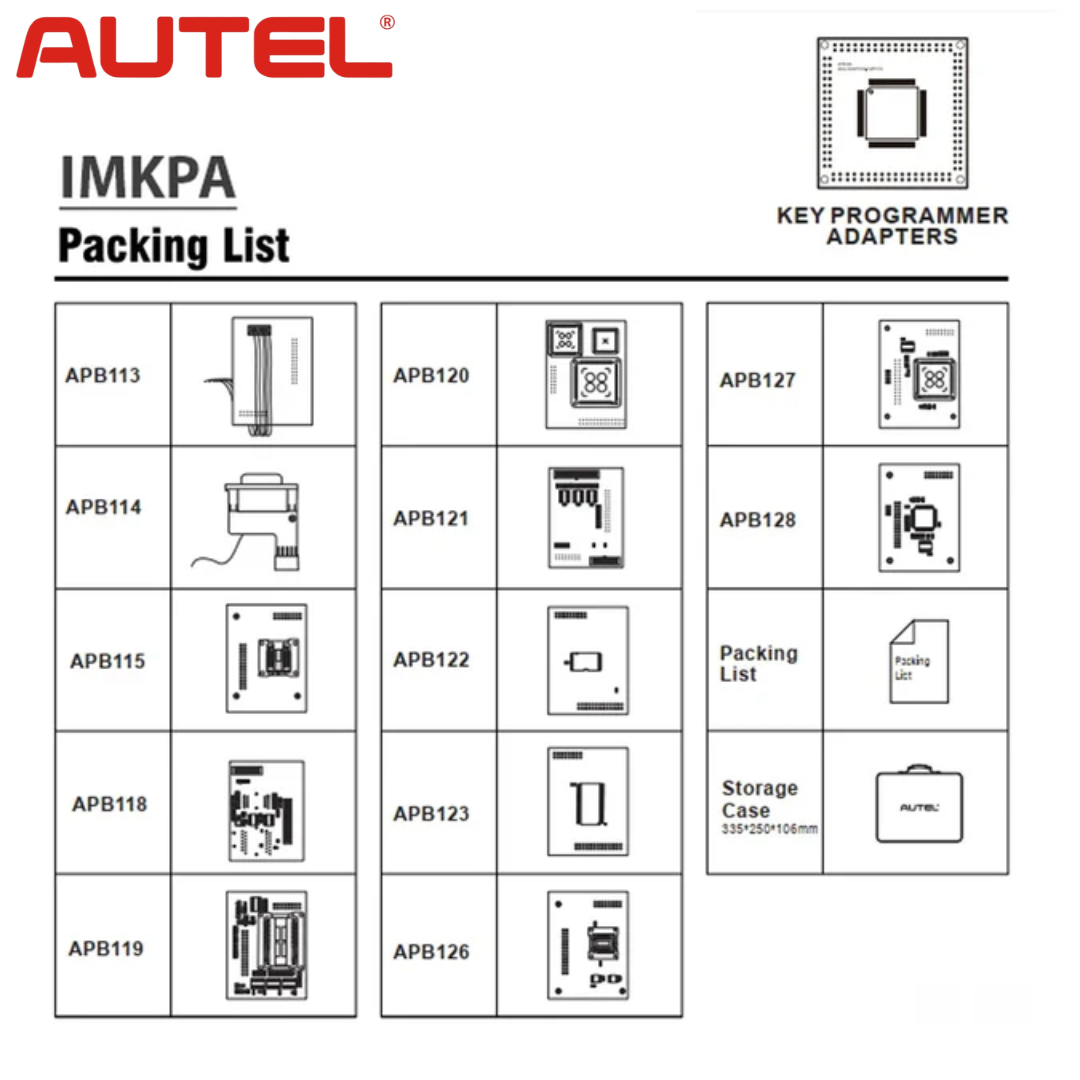

• Includes:
• APB113
• APB114
• APB115
• APB118
• APB119
• APB120
• APB121
• APB122
• APB123
• APB126
• APB127
• APB128
• Storage Case.
