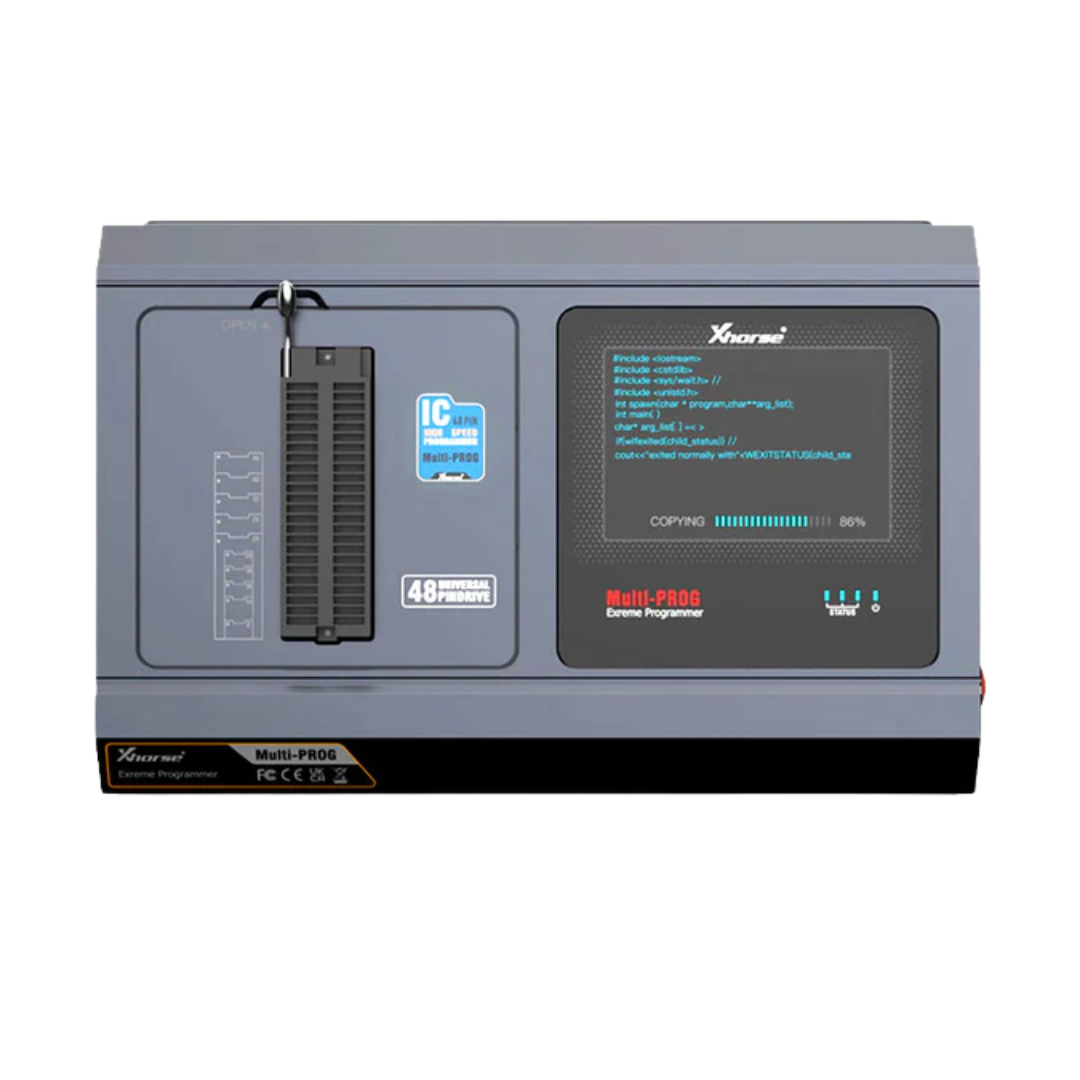

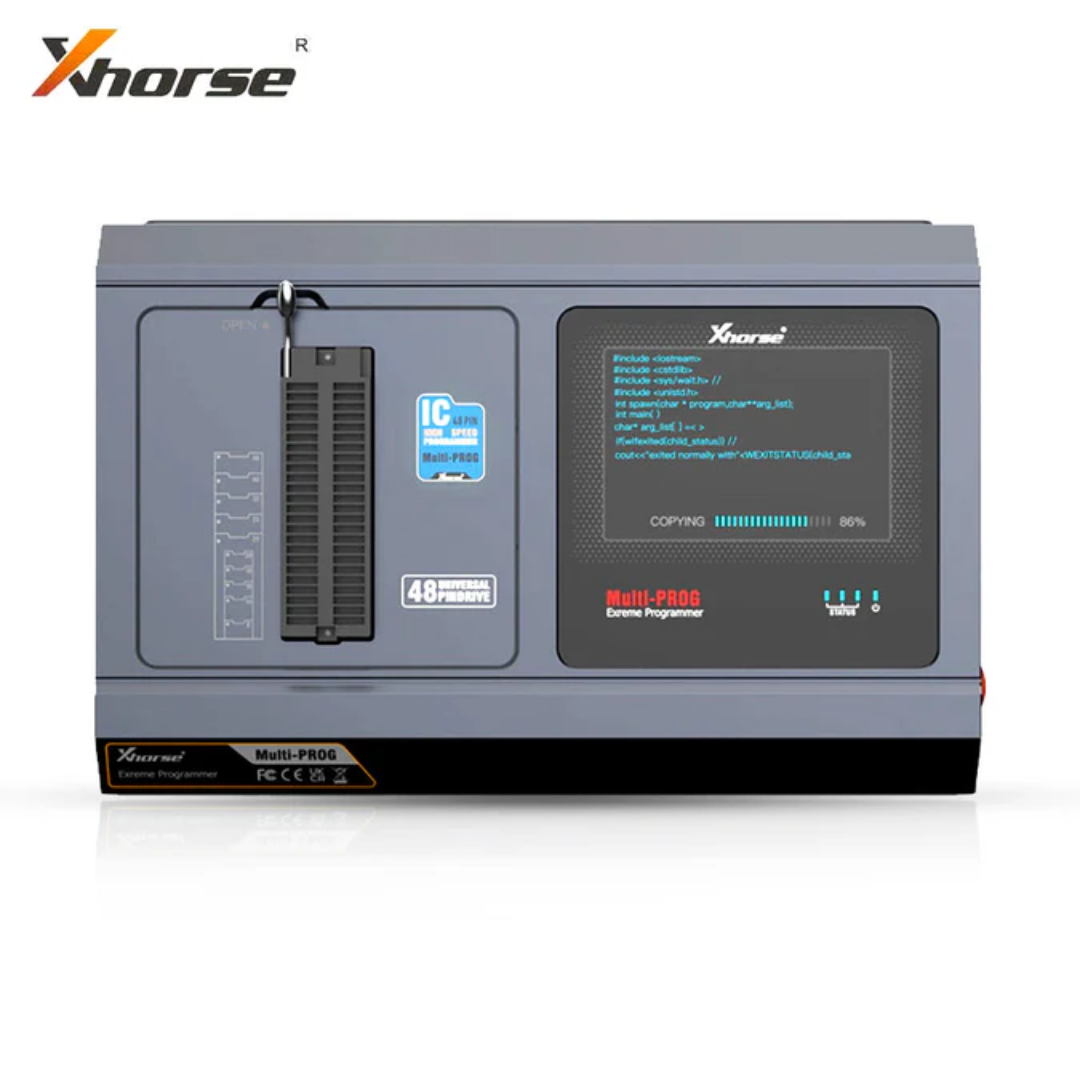

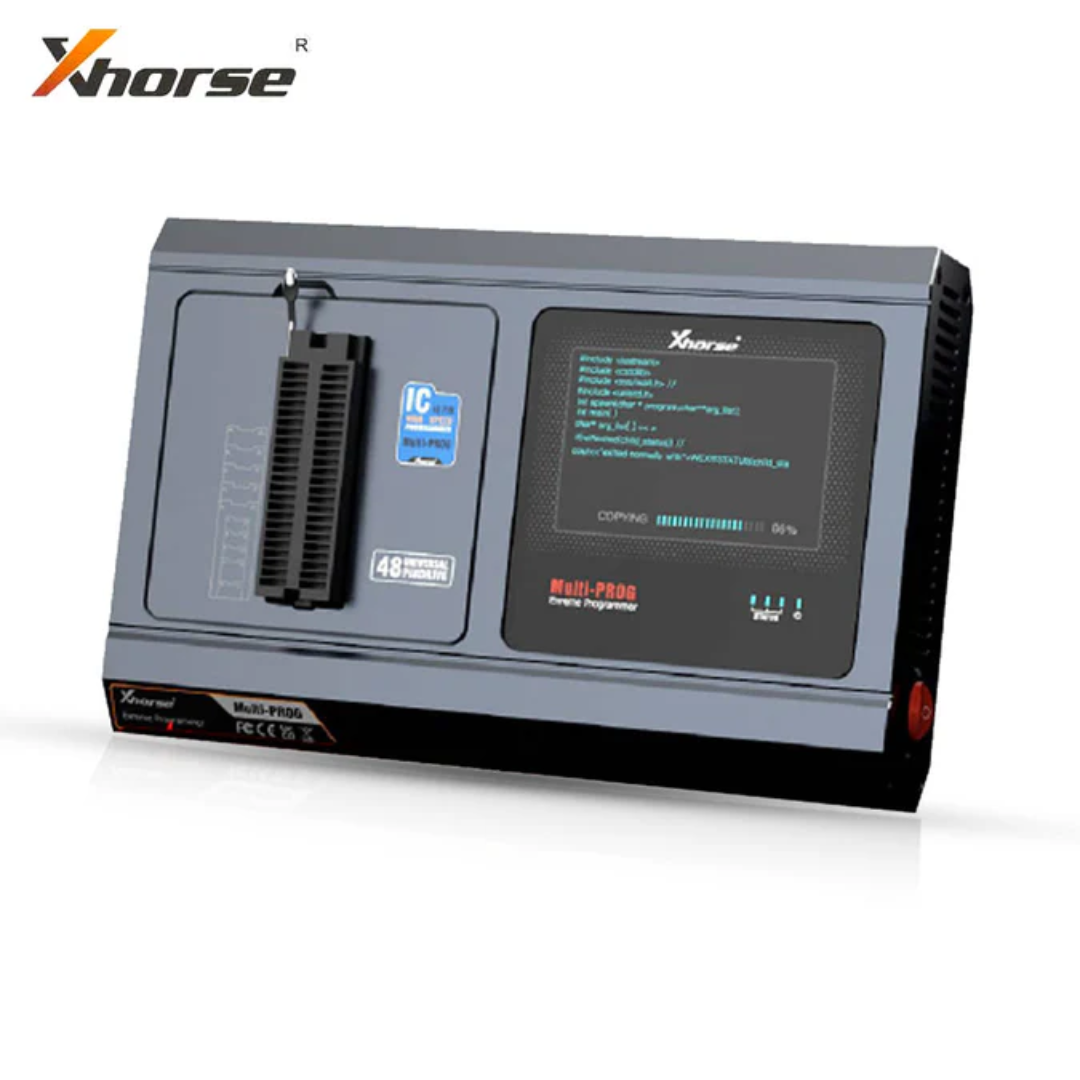

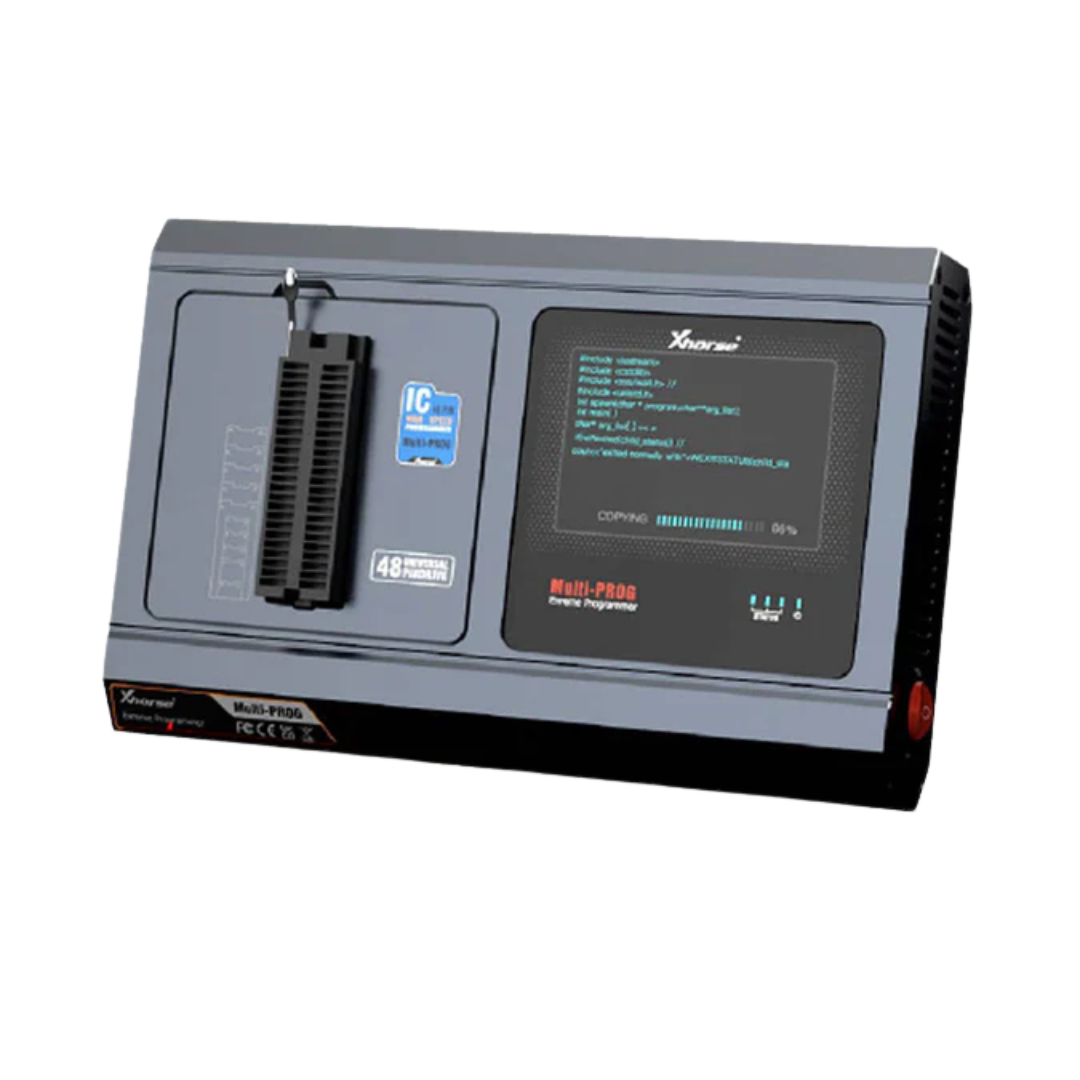

Xhorse XDMPG0GL VVDI Multi-Prog Programmer - Support ECU & TCU (Read / Write / Clone)

Product SKU: DS-XHS-XDMPG0GL

New Xhorse XDMPG0GL Multi Prog Multi-Prog Programmer ECU Gearbox Programmer Update Version of VVDI Prog

Features:

• Built-in update software: Make Multi-Prog firmware update timely.
• High-speed USB communication interface: Make software automatically connect.
• Smart operation mode: possible causes of error will be listed
• Reserve ports: For future update.
• Self-test function: Check if the machine works well or not.
• Power supply: Through USB cable, software will automatically prompt if the external USB power supply is needed
• Get free BMW ISN read function and NEC, MPC, Infineon etc chip continously update service

Xhorse Multi-Prog Programmer ECU Programmer Features:

Read, Write and Clone ECU:

• BMW B48/ B58 reading ISN
• BMW MSD80/ 81/ 85/ 87/ MSV90
• Mercedes-Benz SIM271
• BMW MSV80
• VW Bosch MED17 Series ECUo BMW N13/ N20/ N55/ B38/ TC17X
• Support Marelli.Siemens.Delphi and other ECU manufacturers

Read, Write and Clone TCU:

• Volkswagen Audi Skoda DQ200, DQ250, VL381 TCU etc.
• Porsche DL501 TCU
• Ford Dodge and other MPS6 Series TCU
• BMW DKG, Mercedes-Benz VGS and other models TCU

Vehicle Engine Data Calculation and Processing:

• MED17/ EDC17 data processing

Support Flexible Extension of Third-party Plug-ins:

• Support the development of third-party plug-ins and provide data processing and modification services

Read Write MCU:

•  Support reading and writing MCU of various brands including Renesas, Motolora, NXP, Infineon, etc.
• Support certain encrypted chip reading and writing

Read Write Vehicle Immo Module:

• Support Porsche, LandRover, Mercedes-Benz EZS, VOLVO, VW MQB dashboard, AUDI BCM2,etc.
• Support modules including BMW EWS, CAS1/ CAS2/ CAS3/ CAS4+, FEM BDC.etc.
• Support other common immo modules

Note: Compatible with Xhorse solder-free adapters and cables.

Read & Write EEPROM:

• Support EEPROM and FLASH

Read Write Vehicle Dashboard:

• Support dashboard of VW, Honda, Hyundai, Kia .etc.

Xhorse Multi Prog ECU (Bench Mode):

VAG:

• SIMOS PCR2.1, EDC17c64
• Bosch: MG1CA811
• Bosch: MED17.1.6, MED17.1.21, MED17.1.61, MED17.5, MED1 7.5.1, MED1 7.5.2, MED1 7.5.5_TC1 766, MED1 7.5.5_TC1 767, MED1 7.5.20, MED1 7.5.21, MED1 7.5.25
• Bosch: EDC17C46, EDC17C74, EDC17CP24, EDC17CP44, EDC17CP54, EDC17U01, EDC17U05
• Bosch: MG1CS002一SPC5777, MD1 CP014_TC298TP, MG1 CS001_SPC5777, MG1 CS011 _SPC5777, MG1CS002_TC298TP, MD1 CP004_TC298TP, MD1 CP004一SPC5777, MG1 CS111 一SPC5777, MD1 CS004_TC298TP, MG1 CS008_SPC5777, MG1CS008_TC298TP
• Conditional: SIMOS8.3x, SIMOS8.4x, SIMOS8.5x, SIMOS8.6X

BMW:

• Conditional: MSD80, MSV80, MSD81, MSD85, MSD87, MSV90
• Bosch: MD1CP002_SPC5777, MG1 CS003_SPC5777 (B48, B58), MG1 CS201 _TC298TP (B38, B48, B58), MD1CS001_TC298TP, MG1 CS024_TC298TP(B48, B58), MD1CP032_TC299
• Bosch: EDC1 7CP09_Fxx_TC1 796, EDC1 7C50_Exx, EDC1 7CP45_Exx, EDC17C06, EDC17C56
•  Bosch: MEI 7.2.1
•  Bosch: MEVD1 7.2.3, MEVD1 7.2_Fxx, MEVD1 7.2.4_Fxx(N20), MEVD1 7.2.6_Fxx, MEVD17.2.9_Exx, MEVD17.2.G, MEVD17.2.G (N55), MEVD17.2.H, MEVD1 7.2.6_Fxx, MEVD17.2.P_Fxx, MEVD17.2.K
• Osch: MEV17.2_TC1766, MEV1 7.2_TC1 767, MEV17.2_TC1796, MEV1 7.2.1

Mercedes Benz:

• Conditional: SIM271 DE, SIM271 KE
• Bosch: MEI 7.7, MED17.7.3.1, MED1 7.7.1, MED1 7.7.2, MED1 7.7.3, ME1 7.7.8
• Bosch: EDC17CP10, EDC17CP57, EDC17CP46, EDC17CP60
• Bosch: CRD3x.x_TC1793, CRD3x.x_TC1 797
• Bosch: MD1CP001-SPC5777, MG1 CP002_SPC5777, MD1CS006_TC298TP

GM:

• DELPHI: DCM3.7AP
• DELCO: E37, E38, E39, E39A, E67, E78, E80, E82, E83, E83A, E83B, E84, E87, E92, E98

Nissan:

• DENSO: 23740-3Nxxx_Gen1 SH72531
• Bosch:EDC17C84

Hyundai/Kia:

• Bosch: ME17.9.11, MEI 7.9.11.1
• Bosch:EDC17C53
• Bosch: MEG17.9.1 2_ECU

Ford:

• Bosch: EDC17C70, EDC17CP65
• Bosch: ME17.0.3, ME17.8.5

Volvo:

• Bosch: EDC17CP48, EDC1 7CP48_ver2, EDC1 7CP22

Other:

• AM_ME1 7.8.5,DOO_ME17.8.5
• Bosch: MG1CA007, MEI 7.8.8_TC1728, ME1 7.8.8_TC1 728_HW2, ME17.8.8_TC1 767, ME1 7.8.31, ME1 7.9.52
• Bosch: EDC1 7C55, EDC1 7C1 0, EDC1 7C1 0_TC1 796, EDC1 7C1 0_TC1 797, EDC1 7CP42, EDC1 7CP14, EDC17c81
• Bosch: MEVD1 7.8.4
• Bosch: MED17.8.1 0_TC1 728, MED17.8.1 0_TC1 728_Hw2, MED1 7.8.1 0_TC1 767
• Bosch: MD1 CS01 8, MG1 CS026_SPC58, MG1 CS032, MG1CS163, MD1CS01 2, MD1CS089, MD1CS069, MD1CS005_TC298TP, MG1 CS01 5_TC277TP, MG1 CS01 6_TC275TP, MG1CS01 7_TC277TP, MG1CS01 8, MG1CS019, MG1CS088
• Conditional: SID208, SID209, SID211, SID807EVO ⑧ DENSO: KH, ZY, SH70xx_275xxx-xxx

Xhorse Multi Prog ECU (Boot Mode):

VW Series:

• SIMOS PCR2.1, EDC17c64
• Bosch: MED17.1.6, MED17.1.21, MED1 7.1.61, MED17.5, MED1 7.5.1, MED1 7.5.2, MED17.5.5_TC1 766, MED1 7.5.5_TC1 767, MED1 7.5.20, MED1 7.5.21, MED1 7.5.25
• Bosch: EDC1 7C46, EDC1 7C74, EDC1 7CP24, EDC1 7CP44, EDC1 7CP54, EDC17U01, EDC17U05
• Bosch: SIMOS8.3X, SIMOS8.4x, SIMOS8.5x, SIMOS8.6X

BMW Series:

• Conditional: MSD80, MSV80, MSD81, MSD85, MSD87, MSV90
• Bosch: EDC1 7CP09_Fxx_TC1 796, EDC1 7C50_Exx, EDC17CP45_Exx, EDC17C06, EDC17C56
• Bosch: ME1 7.2.1
• Bosch: MEVD1 7.2.3.MEVD17.2_Fxx, MEVD1 7.2.4_Fxx(N20), MEVD1 7.2.6_Fxx, MEVD1 7.2.9_Exx, MEVD17.2.G, MEVD17.2.G(N55), MEVD17.2.H, MEVD1 7.2.6_Fxx, MEVD1 7.2.P_Fxx, MEVD1 7.2.K
• Bosch: MEV17.2_TC1766, MEV1 7.2_TC1 767, MEV17.2_TC1796, MEV1 7.2.1

Mercedes Benz Series:

• Conditional: SIM271 DE,SIM271 KE
• Bosch: ME17.7, MED17.7.3.1, MED17.7.1, MED1 7.7.2, MED1 7.7.3, ME17.7.8
• Bosch: EDC17CP10, EDC17CP57, EDC17CP46, EDC17CP60
• DELPHI: CRD2.x_MPC556x

Nissan Series:

• Bosch: EDC17C84

GM Series:

• DELPHI: MT80.MT80.1
• DELCO: E37, E38, E39, E39A, E67, E78, E80, E82, E83, E83A, E83B, E84, E87, E92, E98

Hyundai/Kia Series:

• DELPHI: MT86
• DELCO: DCM6.2AP

Other:

• Conditional: SID208, SID209, SID211, SID807EVO, SID310
• SDI21.1 ,SDI21.2,SDI21.3
• Bosch: ME1 7.3.0
• MARELLI: 8DF, MM10JA

Xhorse Multi Prog TCU (Bench Mode):

VW:

• DL382, VL381, DL501 Genl, DL501 Gen2, DQ200Dxx, DQ200-G2, DQ200-G2_PQ, DQ200-MQB, DQ250-MQB, DQ250

Exx/Fxx BMW Series:

• GETRAG DKG 436 Genl, GETRAG DKG 436 Gen2

Mercedes Benz Series:

• VGS-FDCT, VGS2-FCVT, VGS2-FDCT

Ford Series:

• ETRAG MPS6GETRAG
• DPS6, DC4

Xhorse Multi Prog TCU (Boot Mode):

Ford Series:

• DPS6, DC4

Other:

• ZF 9HP

Xhorse Multi-Prog Programmer ECU Programmer Package List:

• 1pc x power cable
• 1pc x MCU DB15 cable
• 1pc x USB cable
• 1pc x Main unit + VH13 adapter
• 1pc x Power adapter
• 1pc x MCU cable
• 1pc x ECU cable
• 1pc x VH24 interface adapter board
• 1pc x VH20 interface adapter board
• 1pc x OBD cable
• 1pc x ECU DB15 cable
• 5pcs x ECU harness plug replacement parts
